Product Description

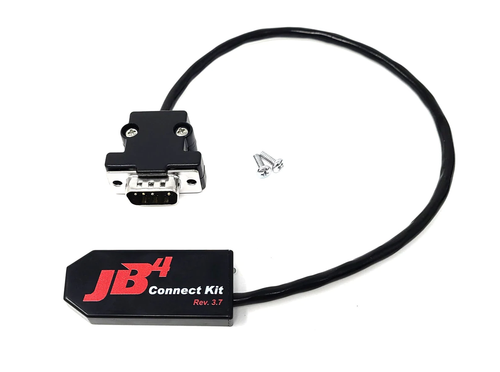

BMS JB4 Bluetooth Connect Kit Rev 3.7 (Separate Power Wire)
This separate power wire is for BMW N54 systems and any JB4 system manufactured prior to 2017. All other systems use pinned power wire. Check board type below before ordering as most don't use this adapter.
The JB4 Connect Kit (Rev 3.7) allows your Bluetooth 4.0 compatible iOS and Android devices to connect wirelessly to your JB4. View critical engine data in real time, datalog, read codes, change maps, update settings, update firmware, and more, all from the palm of your hand! The REV3 mounts next to the JB4 in the engine bay eliminating the need to run a BMS DATA cable inside the cabin. It's compatible with all JB4 products. Just plug it in to the JB4 where your BMS DATA cable connects, attach the power and ground wire to the JB4 harness using the included connectors, purchase the JB4 Mobile app, and you're off and running. Please note the JB4 Mobile app is available for iPhone®, iOS, or Android® and sold separately via the Apple® or Android® app store on your phone. This adapter is not compatible with the JB4 windows interface.
FEATURES & BENEFITS
• Connect and control your JB4 tuner wirelessly
• iPhone and Android compatible
• Monitor your vehicle with a variety of live gauges
• Take logs to tune your vehicle to perfection
• Graph/email your logs to review performance
• Read/Delete error codes
• Change maps
• Change user adjustment/methanol settings
• Update JB4 firmware
• Custom gauge colors/themes
• Charge your phone while using JB4 software
• Made in the USA
JB4 app sold separately in the app store.
VIDEOS
JB4 APP
JB4 Wireless Connect Kit Installation
Step 1: Identify your board type
After determining your JB4 board type, select the appropriate install guide from below:
2b: Unpinned Power Installation (External blue/red wire)
