Product Description

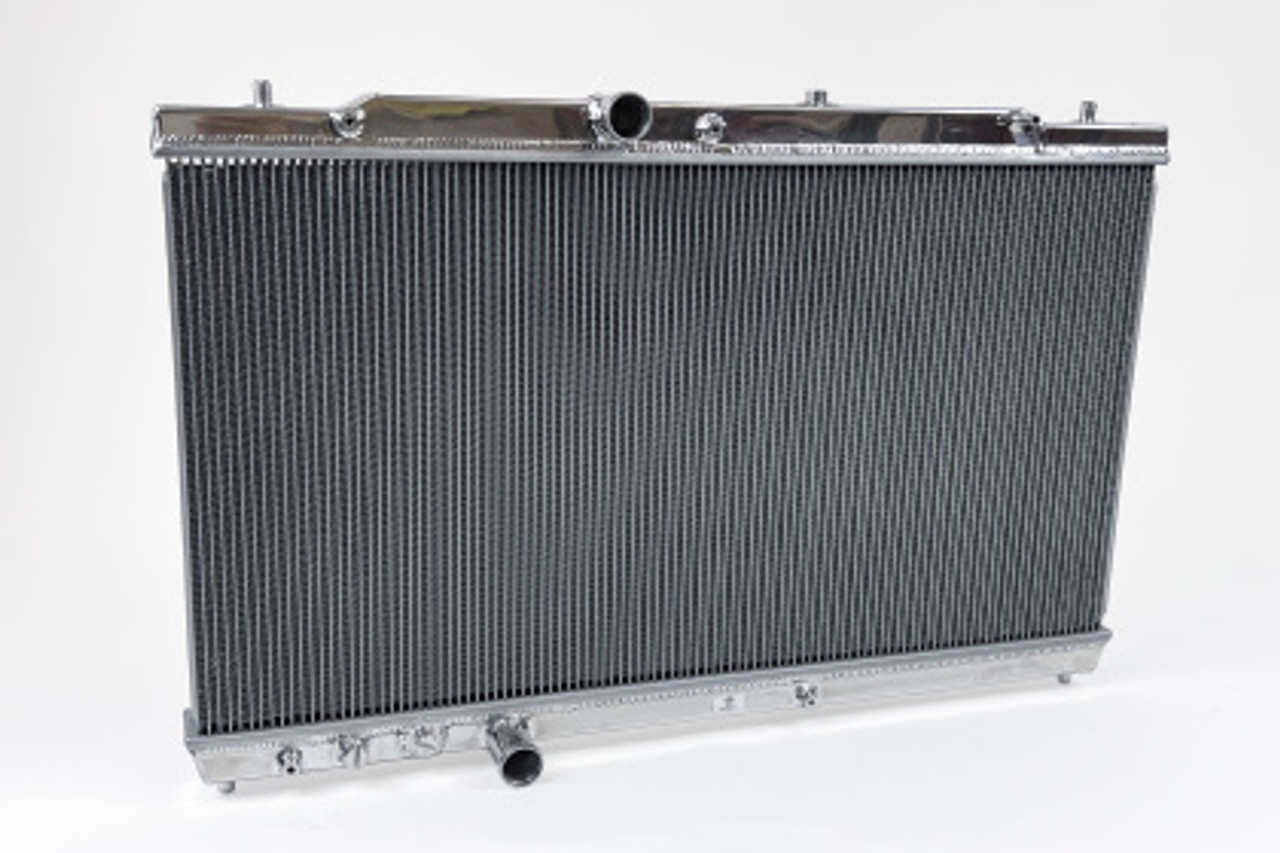

CSF High Performance Aluminum Radiator 7221 2023-2025 Honda Civic Type R FL5
Just like the HPD Race Radiator, the CSF FL5 Civic Type R / DE5 Integra Type S Radiator features the latest 5mm fin technology. The smaller fins significantly increase the heat exchange surface area improving overall cooling efficiency. A larger 2-Row 42mm aluminum core increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. Overall, testing has revealed that the CSF radiator decreases engine coolant temperatures by 6-8% compared to the factory radiator. The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting.
Features and Benefits
- 2-Row, 42mm Ultra-High-Performance Core
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet

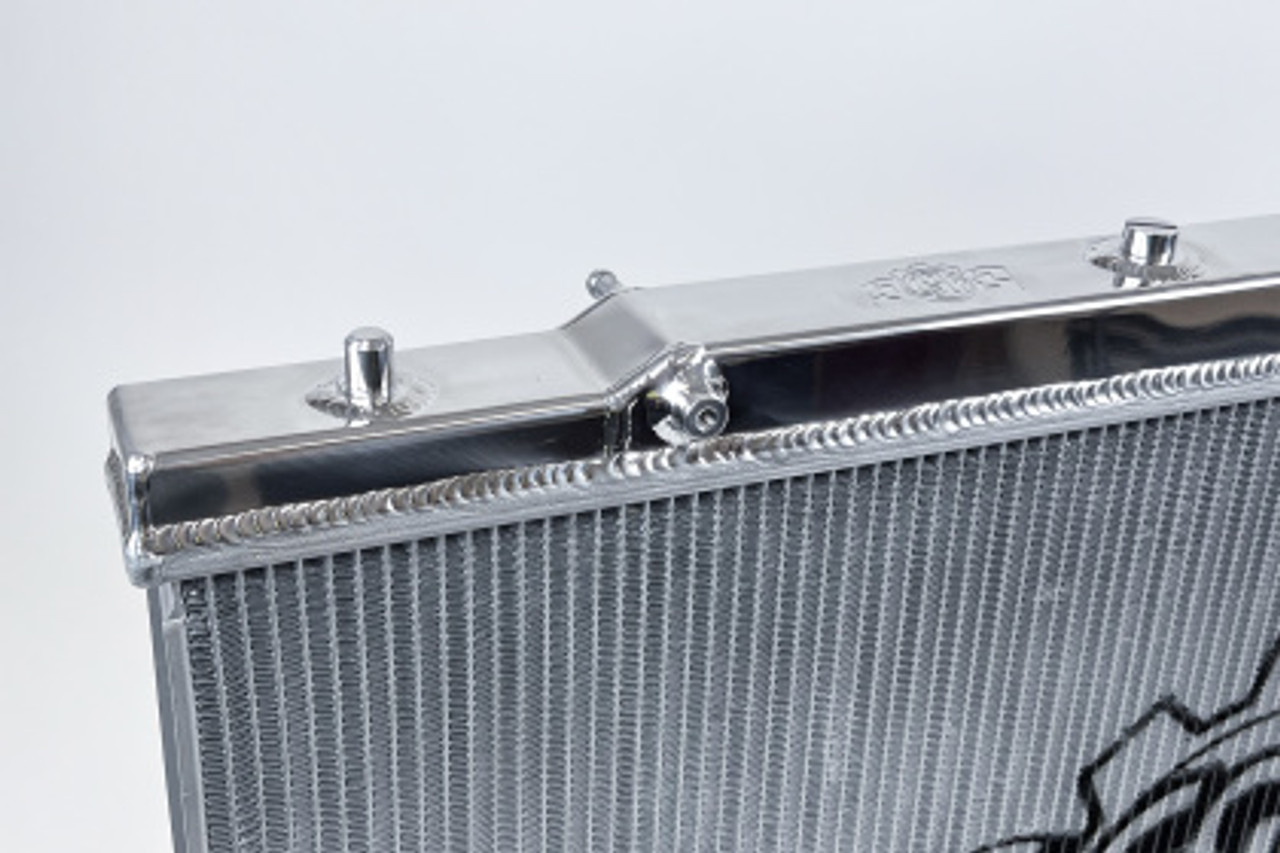

- 100% All Aluminum TIG-Welded Construction
- 1-Hour "Mirror Finish" Hand Polish
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
Product Details:
CSF Cooling has a strong track record in Honda cooling systems, including collaboration with Honda Performance Development (HPD) on factory radiators. Their expertise led to developing the HPD Race Radiator for the FK8 Civic Type R TCR and, subsequently, the CSF FL5 High-Performance Radiator. Built with advanced 5mm fin technology, it enhances heat transfer by 20-25% over traditional designs. Featuring a 2-row, 42mm aluminum core with B-Tube Technology, it improves cooling efficiency by 15% and reduces engine coolant temperatures by 6-8%. It offers superior durability and performance and is ideal for high-performance and turbocharged applications like the Civic Type R's K20C1 engine.
Application: 2023+ Honda Civic Type R (FL5)/ 2023+ Acura Integra Type S (DE5)
Part Number:
7221, CSF 2023+ Honda Civic FL5 Type R / 2024+ Acura Integra DE5 Type S All-Aluminum Radiator
About CSF Cooling
CSF Cooling is a family-owned manufacturer of industry-leading cooling systems for over 250 different applications. The company prides itself on using the most advanced technologies, machines, and experienced personnel to produce the world’s best cooling systems. CSF Cooling manufactures high-performance all-aluminum direct-fit radiators, intercoolers, and oil coolers designed and engineered to maintain optimal engine temperatures, even under the most extreme driving conditions.
