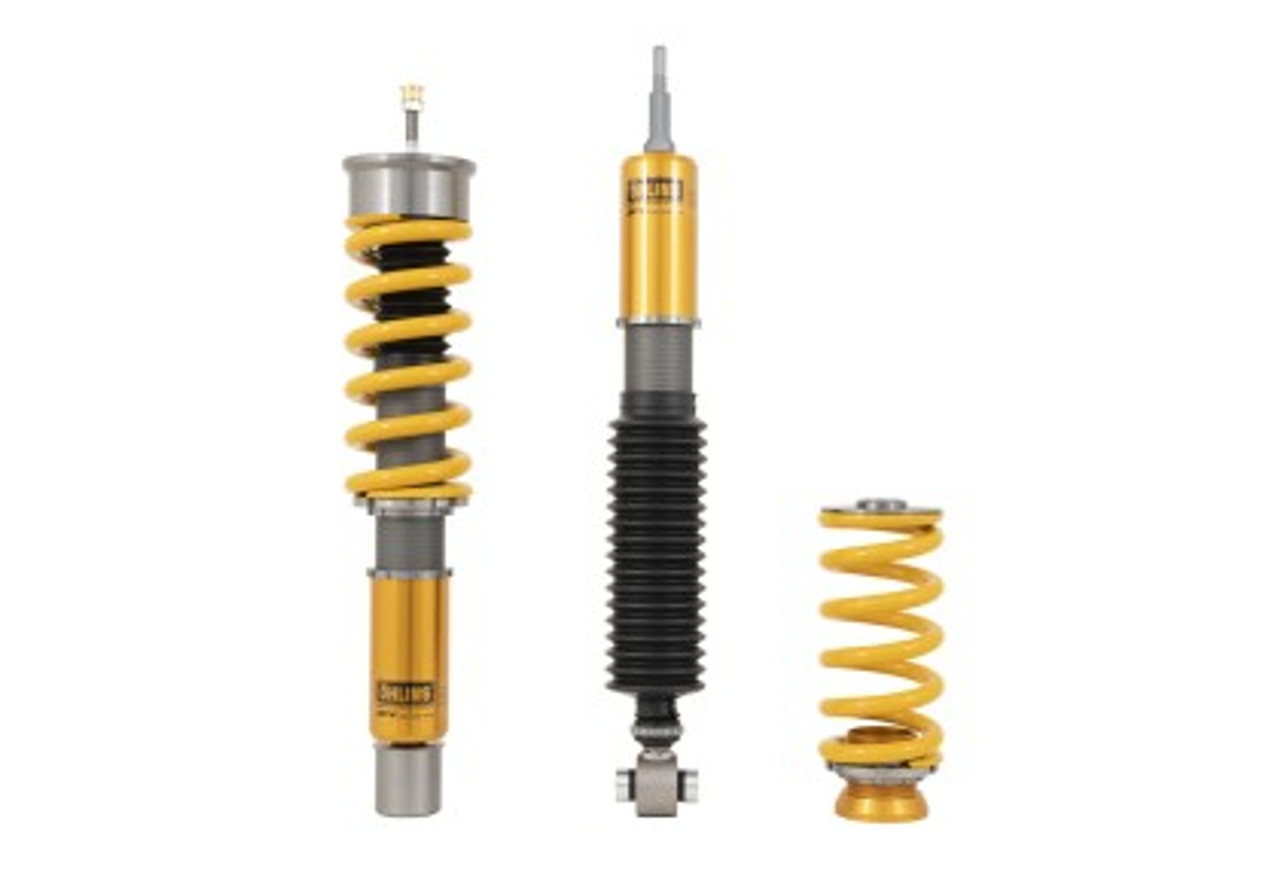

Road & Track Coilover Suspension Audi A4/S4/RS4 (B9), A5/S5/RS5 (F5) AUS MU00S1
A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.
General Features:
DFV technology (Dual Flow Valve)
Height adjustable
Rebuildable
Corrosion salt spray tested (ISO 9227)
2 year limited warranty
Delivery without springs
Features Front:
McPherson strut, upside down
Compression and rebound damping with one adjuster
Spring preload adjuster
Approx. 20 - 35 mm lower than standard with recommended setup
Dustcovers
Use with original top mounts
Features Rear:
Conventional Shock Absorber
Compression and rebound damping with one adjuster
Spring preload adjuster
Approx. 20 - 35 mm lower than standard with recommended setup
Dustcovers
Use with original top mounts
Purchased Parts Package:
Coil over kit
C-Spanner (for spring preload adjustment)
Owners manual and mounting instruction
Sticker set
Additional Options:
Öhlins EDC Cancellation Kit, part no. 35020-31
EDC cancellation kits are not included and need to be ordered separately.
Fits the following vehicles
Audi A4 (B9), 2015 – 2024
Without TUEV certificate (Germany)
Manufacturer confirmation (SUI)
Not for cars with magnetic ride control!
Audi A5 (F5), 2016 – 2024
Without TUEV certificate (Germany)
Manufacturer confirmation (SUI)
Not for cars with magnetic ride control!
Audi RS4 (B9), 2017 – 2024
Without TUEV certificate (Germany)
Manufacturer confirmation (SUI)
Not for cars with magnetic ride control!
Audi RS5 (F5), 2017 – 2024
Without TUEV certificate (Germany)
Manufacturer confirmation (SUI)
Not for cars with magnetic ride control!
Audi S4 (B9), 2016 – 2023
Without TUEV certificate (Germany)
Manufacturer confirmation (SUI)
Not for cars with magnetic ride control!
Audi S5 (F5), 2016 – 2024
Without TUEV certificate (Germany)
Manufacturer confirmation (SUI)
Not for cars with magnetic ride control!
