Product Description

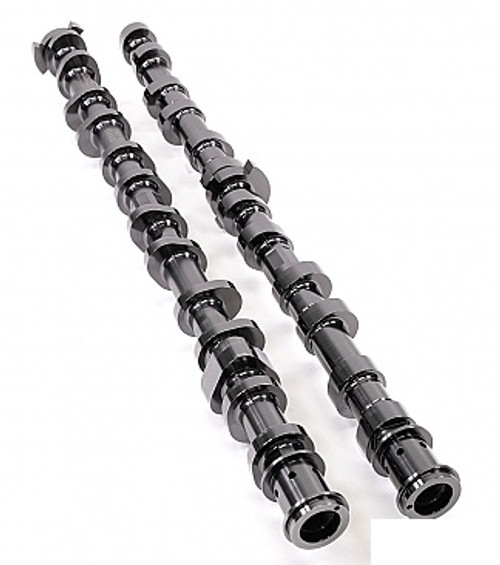

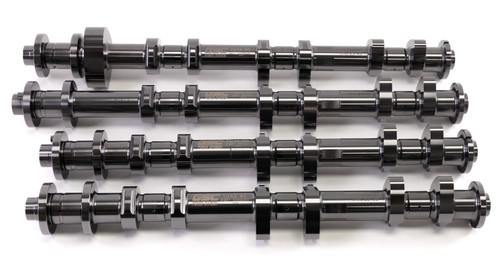

Skunk2 Ultra Series Stage 1
Camshafts for Toyota Supra
MK5/BMW B58 - 305-14-1000
/// FEATURES
• Billet 8660 Alloy Steel Camshafts
• Improved Efficiency/Power
• Widest Possible Power Band
• Smooth Driveability & Idle
• Retains Double VANOS +
Valvetronic Functionality
/// ENGINEERING
Skunk2 Ultra Series Stage1 Camshafts for Toyota Supra MK5/BMW
B58 significantly increases engine efficiency and power output by
utilizing advanced lobe profile designs that retain full Valvetronic
and Double VANOS functionality, which ensures the widest possible
powerband with smooth drivability and idle. For the ultimate in
precision and strength/rigidity†
Skunk2 Ultra camshafts are machined
from forged solid 8660 alloy steel blanks that are then rifle drilled,
induction hardened, and CNC precision ground.
Expect gains of 6% to 10% from 3,500rpm to redline with
approximate gains of 100hp and 100lb-ft at 40psi boost pressure.
Though Ultra Stage1 cams are compatible with stock OEM valve
springs, we recommend the use of Skunk2 upgraded High Lift Valve
Springs along with Titanium Retainers (PN: 313-14-1000) for the B58
as long term durability using stock valve springs is unknown.
†
When pushing performance, all OEM B58 camshafts are prone to bend due to the thin cam barrels designed to
save weight and cost. Skunk2 Ultra Camshafts are made from high strength alloy steel and feature a thick-wall
barrel design to better resist camshaft flex.
/// FITMENTS
M240i (G42) 2022 -
M340i (G20) 2019 -
M440i (G22) 2021 -
540i (G30 LCI) 2020 -
540i 48V (G30) 2021 -
740i 2020 -
740i 48V 2021 -
840i 2018 -
840i 48V 2021 -
X5/X6/X7 40i 2019 -
Z4 M40i 2019 -
A90/MK5 Supra ALL
/// SPECIFICATIONS
LIFT
DURATION
0.410” / 10.41mm
227 ̊ @ 0.050” / 1.3mm
234 ̊ @ 0.039” / 1.0mm
277 ̊ @ 0.004” / 0.1mm
INTAKE CAMSHAFT
LIFT
DURATION
0.425” / 10.79mm
245 ̊ @ 0.050” / 1.3mm
252 ̊ @ 0.039” / 1.0mm
295 ̊ @ 0.004” / 0.1mm
