Product Description

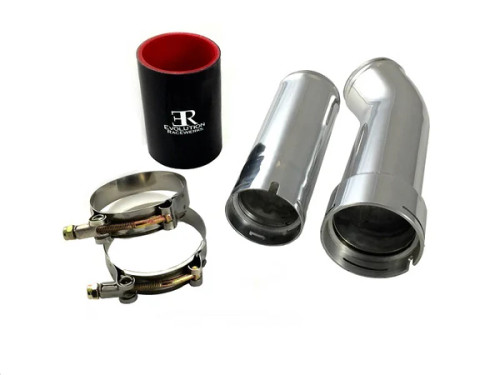

Evolution Racewerks BMW N20 / N26 (F30) Charge Pipe BM-ICP006
Introducing our new Charge Pipe for the 2012, 2013 and 2014 BMW 328i / 320i / 428i /420 N20/N26 Single Turbo Engine! Key Features: Increase throttle response and decreases turbo lag. Lightweight High Grade 6061 Aluminum Piping. Replaces the factory soft plastic charge pipe that is prone to breaking under high boost. Throttle body matched 3" piping. Retains factory style o-ring throttle body lock flange. Precision CNC machined throttle body flange ensures leak free connection to throttle body. Quick and easy connection and disconnection to throttle body. Ideal connection compared to the silicone hose and hose clamp connection found in all other aftermarket diverter valve upgrade pipes available in the marketplace. Precision CNC machined MAP sensor flange ensures leak free connection. Charge Pipe features beaded ends and T-bolt clamps to prevent intercooler piping from coming off from boost. Silicone Hump Hose included. Optional Type III Hard Black Anodizing (for stealth and OEM look). Hard anodizing helps improve durability of intercooler piping. Resists bent or dented piping. Compatible with the factory electronic diverter valve. Includes all hardware for complete installation. Limited Lifetime Warranty. Turn up the boost with a tune and find your factory charge pipe break apart? Fear not! The solution is here! Replace it with a higher flowing, stronger aluminum charge pipe! Made 100% of 6061 high grade aluminum, this will never happen again (backed by our Limited Lifetime Warranty)! Often ignored, charged intake airflow characteristics greatly affect throttle response, turbo lag and ultimately maximum power potential. Smooth bends and minimal obstructions are ideal. We used 6061 aluminum (lightweight) mandrel bent piping to ensure smooth transitions. The upper pipe features 3" piping to match up to the factory throttle body (factory pipe is 2.5"), ensuring maximum flow without obstruction. We were the first manufacturer to duplicate the factory throttle body flange with our N54 charge pipe. We bring the same thing to the N20/26 charge pipe. During our research and development, the connection at the throttle body was looked over very carefully. The factory charge pipe is connected to the throttle body using an o-ring inside the throttle body flange which is locked in place by a c-clip, which works very well. It also make removal/installation quick and easy. Our testing had shown it could hold quite a bit of boost. During our testing, we had pressure tested this connection up to 25 PSI. The reason why we stopped at 25 PSI was because at 25 PSI, one of the intake pipes on the turbo blew off and we could not test any higher. Hoewver, we were confident that it would easily hold over 25 PSI as the throttle body flange showed no signs of failing. Also, keep in mind, this type of connection is used throughout the engine, in many crutial areas like the coolant radiator system as well as the clutch system. If BMW did not believe in the durability of this type of connection, they would not use it in such important areas. Precision CNC machined throttle body flange ensures boost leak free connection Many of our competitors use a silicone hose connection for the throttle body connection. It is not designed for a silicone hose connection which is used by all the other brand diverter valve pipe upgrades in the market. The throttle body lip is too short and there are no "beads" to prevent the silicone hose from blowing off under boost. Even though it is the easiest way to "rig" together, it is not ideal. The best way to connect the new diverter valve pipe to the throttle body is to replicate the same connection which we did. We spent a lot of resources developing and manufacturing this factory style connection for this reason. Precision CNC Machined MAP Sensor Flange and Vacuum Fitting ensures boost leak free connection The same issue came with the MAP sensor. The MAP sensor seals to the factory diverter valve pipe via a o-ring on the sensor itself. Having a hole in a silicone hose will definitely cause a boost leak as it will not properly seal. Therefore, again we CNC machined our own replica MAP sensor flange that utilizes the same factory o-ring seal. The charge pipe kit for the F30 N20/N26 engine features two charge pipes, the upper and lower charge pipes. Both charge pipes are included in the kit and are required for installation. 1/8" NPT Bungs (For methanol anol or Nitrous Injectors): With the popularity of methanol anol injection systems and nitrous systems, we have added the option of having a 1/8" NPT threaded bung (for methanol anol or nos injectors) welded to our diverter valve charge pipe. This allows quick and easy installation of methanol anol/nitrous injectors that are used in methanol anol injection systems and nitrous systems. Our charges pipes come with 2 methanol bungs standard (you can custom order only 1 or none). Each 1/8" NPT bung will come with a plug so that you can run with or without the methanol anol injector. This is perfect for those who do not have the methanol anol Injection yet but plan to do so in the future. Also, the 1/8" NPT bung can be used as a boost source if you do not run methanol anol injection. Perfect place to connect your boost gauge or other devices to. The N20/26 engine does not have a pressurize hose or fitting from the factory that you can easily tap into. Now you do! Note - For customers who have the Aquamist methanol anol Injection Kit, Aquamist injectors use a 8mmx0.75 thread pitch instead of the 1/8" NPT standard that every other brand uses. If you have an Aquamist methanol anol Kit, no worries! We have bungs made specifically for the Aquamist. Specify below if you need Aquamist bungs. Since this affects a very low amount of people, they will be custom made for you and not be regularly stocked. Also, we do not have plugs for these bungs. You will have to already have the Aquamist kit.
NOTE:*ER products comes in many configurations therefore not all configurations may be in stock. Please inquire within for availability or stock or please assume up to 1 week for Polished and 2.5 weeks for Anodized Black. Some items if in stock ship same day.*
Evolution Racewerks BMW N20 / N26 Charge Pipe BMW 320i / 328i / 428i / 420i
